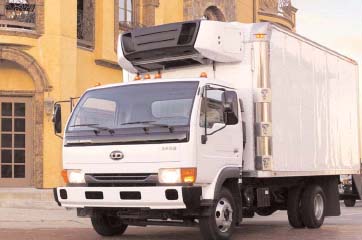

UD1400
| |
| 2007 MODEL YEAR | |
| SPECIFICATIONS: UD1400 |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WHEELBASES | A | C | E |
| GVWR (lb.) | 14,250 | 14,250 | 14,250 |
| Chassis Weight(lb.) | 5,475 | 5,585 | 5,655 |
| Front (lb.) | 3,735 | 3,855 | 3,935 |
| Rear (lb.) | 1,740 | 1,730 | 1,720 |
| Gross Payload (lb.)* | 8,775 | 8,665 | 8,595 |
| Wheelbase (in.)** | 108.9 | 131.9 | 149.4 |
| Cab-to-Rear Axle (in.) | 83.4 | 106.4 | 123.9 |
| Rear Overhang (in.) | 49.6 | 49.6 | 49.6 |
| Overall Length(in.) | 203.2 | 226.2 | 243.7 |
| Typical Body Lengths (ft.)*** | 10/12 | 14/16 | 16/18 |
| Turning Radius (ft.) | 17.4 | 20.7 | 23.0 |
*Gross payload capacity equals GVWR minus chassis weight. Installation of specialized equipment or bodies may require frame reinforcement. **Wheelbase selection should be based on specific weight distribution. ***Typical body lengths assume water level load (no specific consideration for driver, passengers, or fuel) to maximize GVWR. Addition of ancillary equipment such as lift gates and refrigeration units not considered in calculations.
| ENGINE |
MD-175* 16 valve
Turbo/Intercooled Diesel In-line 4 cylinder, Direct-injection |
| Horsepower | 175 hp @ 2,700 rpm |
| Torque | 347 lb. ft. @ 1,600 rpm |
| Displacement | 289 in.3 (4.728 L) |
| Cylinder Liner | Dry, replaceable |
| Fuel System |
Electronically controlled, common
rail system |
| Air Cleaner | 11.0 in., dry type |
| Cold Starting Aid | Automatic electric glow plug |
| Fan | Viscous type drive |
| *MD-175 (JO5D-TA) is a vendor engine manufactured for Nissan Diesel Motor Company | |
|
FRONT AXLE
GAWR |
5,360 lb. |
| Rated Axle Capacity | 6,170 lb. |
| Axle Type | "I" Beam |
| Suspension | Semi-elliptic leaf springs |
| Shock Absorbers | Double acting, telescopic type |
|
REAR AXLE
GAWR |
9,880 lb. |
| Rated Axle Capacity | 11,500 lb. |
| Axle Type | Full-floating banjo housing |
| Suspension | Semi-elliptic leaf springs with auxiliary springs |
| WHEELS & TIRES | |
| Tires |
Front: Single, highway tread
Rear: Dual, traction type 215/85R16 - 10PR (tubeless radial) |
| Wheels |
Steel disc type, 6 hole,
6 x 16 in., offset 5.0 in. |
| BRAKE SYSTEM | |
| Service Brakes |
Anti-lock Braking System*. Dual line, hydraulic brake system with vacuum assist |
| Front |
Ventilated disc brakes |
| Rear |
Internal expanding, dual two leading shoe, self-adjustiing drum brakes |
| Parking Brake |
Hand brake lever activating drum at rear of transmission |
| Exhaust Brake |
Electrically controlled, vacuum activaated butterfly valve in exhaust pipe |
| CHASSIS FRAME | Ladder type, channel section side rails |
| Dimensions (in.)* | 7.09 x 2.36 x 0.18 |
| Assembled Width (in.) | 29.5 |
| Section Modulus (in.3) ** | 6.29 |
| Yield Strength (psi) | 44,000 |
| RBM (in.-lb.) | 554,000 |
| Rear Inner Reinforcement | STD on A & E Wheelbase |
*Height x Flange Width x Thickness
**Measured at back-of-cab, specifications based on complete chassis (both rails)
| FUEL TANK |
Round fuel tank, mounted to right side
Capacity - 33 gallons |
| CAB | Forward control, steel welded construction, tilting cab with cab suspension |
| Air Conditioner | Standard |
| Assist Handles | Two, driver & passenger |
| Cab Glass | Windshield, tinted laminated glass - 1900 in2 |
| Center Console | Standard |
| Center Seat | Folding with center console | Rearview Mirrors | West coast type |
| Steering Column | Tilt & telescopic type |
| Sun Visors | Driver & passenger |
| Windows | Driver & passenger, electric control |
| Windshield Wipers | Dual, electric-driven, intermittent & 2 speed |
| ELECTRICAL EQUIPMENT |
Back-up lights (2) Cigar lighter Clearance, identification & side marker lights Day-time running lights Halogen headlights, 2 lamps Interior light License light Side turn signal lights Stop/tail lights Turn signal/hazard lights |
| INSTRUMENTS | |
| Meters & Gauges |
Coolant temperature gauge Fuel gauge Speedometer, odometer & trip meter Tachometer |
| Warning & Indicator | |
| Lights & Buzzer |
ABS warning light Alternator low charge warning light Automatic transmission:
Engine control system warning light Engine glow plug indicator light Exhaust brake indicator light Hazard warning flasher High beam indicator light Low oil pressure warning light Low brake fluid level warning light Low coolant level light & buzzer Parking brake indicator light Sedimentor warning light Turn signal indicator lights Warning lights with burn-out bulb check function Backup alarm |
| OTHER OPTIONS |
AM/FM stereo radio with CD Block heater |
